Faster delivery times

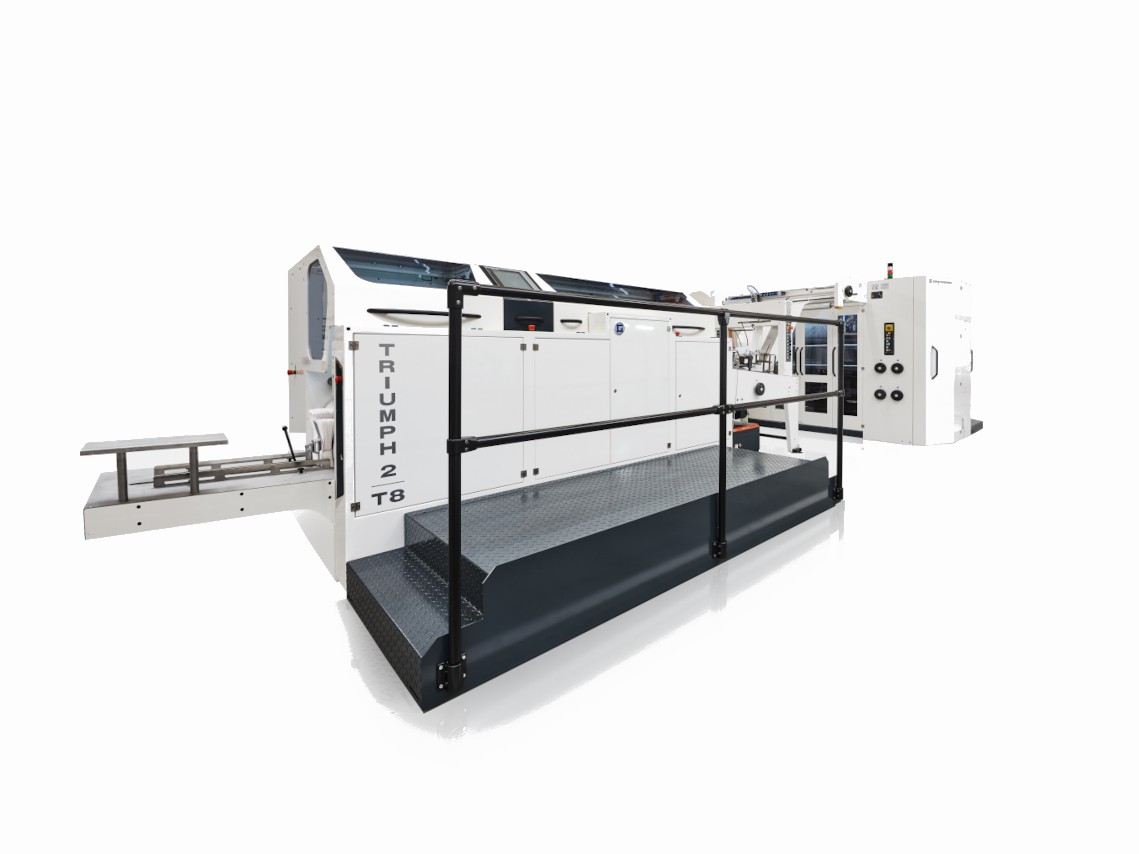

TRIUMPH 2-T8 with twisted handle unit and shaftless unwind
Block bottom bag machine
- Bag width: 80 - 280 mm | 3.15 - 11.02 inch
- Bottom width: 50 - 170 mm | 1.97 - 6.69 inch
- Cut-off length: 250 - 550 mm | 9.84 - 21.65 inch
- Shaftless unwind for ergonomic and efficient reel changes
- Twisted handle unit for premium paper carrier bags
- Precise servo technology for a high degree of automation
- Designed for short runs and changing production requirements
- Wide format range for maximum application flexibility
TRIUMPH 2-T8 for 2-ply bags with bottom patch
Block bottom bag machine
- Bag width: 80 - 280 mm | 3.15 - 11.02 inch
- Bottom width: 50 - 170 mm | 1.97 - 6.69 inch
- Cut-off length: 250 - 550 mm | 9.84 - 21.65 inch
- Double unwind for two-ply bag production
- Rear frame with feeding unit and crosspasting
- Bottom patch unit for increased bottom strength
- Designed for demanding food and industrial packaging
- Flexible production with short set-up times
MATASIM with LINAFLEX S
Flat and satchel bag machine
- Bag width: 60 - 280 mm | 2.36 - 11.02 inch
- Cut-off length: 105 - 560 mm | 4.13 - 22.05 inch
- Simple machine concept with easy operation
- Cost-effective production of flat and satchel paper bags
- Reliable technology with low maintenance requirements
- LINAFLEX S inline flexo printer for printed bag production
- Ideal for short production runs and changing print designs

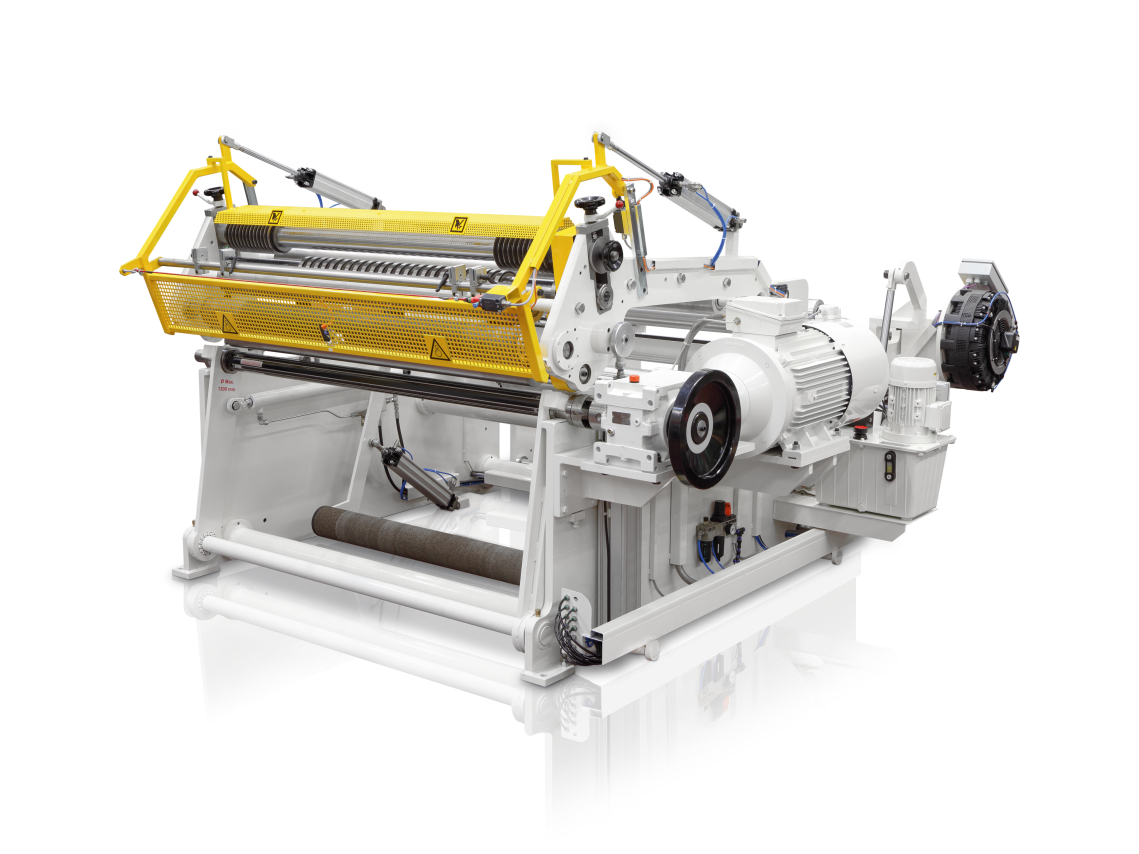

LONGSLIT 1013 P working width 1350 mm | 53.15 inch
Slitter rewinder for paper
- Material range: 50 - 200 g/m² paper
- Minimum slitting width: 25 mm | 0.98 inch
- Speed: up to 400 m/min | up to 1313 ft/min (depending on material)
- Mother roll diameter: max. 1300 mm | max. 51.18 inch
- Finished roll diameter: max. 1300 mm | max. 51.18 inch
- Flexible slitting widths down to 25 mm | 0.98 inch
- Hydraulic loading and unloading
- Free knife adjustment for fast set-up
- Simple and operator-friendly machine concept
LONGSLIT 1013 P working width 1450 mm | 57.09 inch
Slitter rewinder for paper
- Material range: 50 - 200 g/m² paper
- Minimum slitting width: 25 mm | 0.98 inch
- Speed: up to 400 m/min | up to 1313 ft/min (depending on material)
- Mother roll diameter: max. 1300 mm | max. 51.18 inch
- Finished roll diameter: max. 1300 mm | max. 51.18 inch
- Flexible slitting widths down to 25 mm | 0.98 inch
- Hydraulic loading and unloading
- Free knife adjustment for fast set-up
- Simple and operator-friendly machine concept
LONGSLIT 1013 P working width 1500 mm | 59.06 inch
Slitter rewinder for paper
- Material range: 50 - 200 g/m² paper
- Minimum slitting width: 25 mm | 0.98 inch
- Speed: up to 400 m/min | up to 1313 ft/min (depending on material)
- Mother roll diameter: max. 1300 mm | max. 51.18 inch
- Finished roll diameter: max. 1300 mm | max. 51.18 inch
- Flexible slitting widths down to 25 mm | 0.98 inch
- Hydraulic loading and unloading
- Free knife adjustment for fast set-up
- Simple and operator-friendly machine concept
